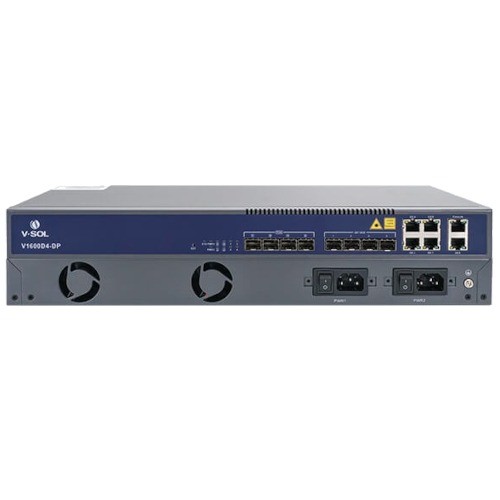

V-SOL V1600D4-DP EPON OLT

✅ Product Information

• Product Name: V-SOL V1600D4-DP EPON OLT

• Brand Name: V-SOL

• Category: Networking Equipment

• Sub-category: EPON OLT (Optical Line Terminal)

🔍 Key Features

• Model: V1600D4-DP

• Converter Type: OLT

• Transmission Distance: Up to 20KM

• Max Splitting Ratio: ≤ 1:64

• Auto Discovery & Configuration: Supported

• Physical Interfaces:

  • 4 × EPON Ports (SFP Slots)

  • 1 × FE Out-band Management Port

  • 1 × CONSOLE Port

• EPON Port Speed: 1.25Gbps Upstream / 1.25Gbps Downstream

• Wavelength: TX 1490nm / RX 1310nm

• Connector Type: SC / UPC

• Supported PON Modules: PX20, PX20+, PX20++, PX20+++

• Management Protocols: EMS, TR069, VACS, WEB, SNMP, Telnet, CLI

• Security Features:

  • IEEE802.1x

  • Radius, Tacacs+

  • HTTPS, SSH v2.0

  • DHCP Snooping, Option 82, IP Source Guard

  • SNMP, Telnet, ACL, Secure login access

⚙️ Power & Environmental

• Power Supply: AC 100–240V or DC -48V

• Power Consumption: ≤ 35W

• Frequency: 47–63Hz

• Net Weight: 3.2 kg

• Gross Weight: 4.3 kg

• Operating Temperature: 0°C ~ +50°C

• Storage Temperature: -40°C ~ +85°C

🌐 Use Case Scenarios

Ideal for:

• Cost-sensitive areas

• Smart industrial parks

• FTTM (Fiber To The Machine) in commercial buildings

• Compatible with all EPON ONU brands

• Offers strong firewall-based security protection
